HXPS420 Plastic Spiral Book Notebook Binding Machine Direct Wire Feeding Continuous Operation Unit

Name: HXPS420 Plastic Spiral Book Notebook Binding Machine Direct Wire Feeding Continuous Operation Unit
Brand: HXCP
Price: 44190 USD

Buy cheap HXPS420 Plastic Spiral Book Notebook Binding Machine Direct Wire Feeding Continuous Operation Unit product

Supply Ability : 3 sets/month

Min Binding Size : 72×72mm

Delivery Time : 30 work days

Packaging Details : Vacuum packing with export wooden case.

Coil Diameter Range : Parameter Binding WayPlastic Coil BindingBinding MaterialPVC Plastic CoilMax Binding Size420×300mmMin Binding Size72×72mmMax Binding Thickness23mm (Standard) / 28mm (Customized)Binding SpeedMax 800 books/hCoil FormingForming the Plastic Coil Diameter by In

Binding Speed : Max 800 books/h

Power Supply : 3Ph 380V, 8KW

Brand Name : HXCP

MOQ : 1 set

Model Number : HXPS420

Price : USD 44190 per set

Place of Origin : China

Coil Forming : Forming the Plastic Coil Diameter by Interchangeable Tools

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Max Binding Size : 420×300mm

Custom Hole Pitch : Supported

Air Pressure : 5-8 kgf

Max Binding Thickness : 23mm (Standard) / 28mm (Customized)

Binding Way : Plastic Coil Binding

Standard Hole Pitch : 6.35mm (4-1 pitch) / 8.47mm (3-1 pitch)

Contact Now

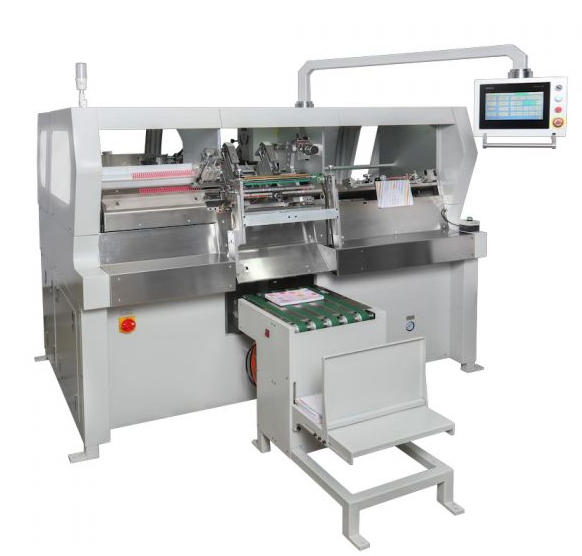

HXPS420 Plastic Spiral Coil Forming and Binding Machine HXPS420 Plastic Spiral Book Notebook Binding Machine Direct Wire Feeding Continuous Operation Unit

Designed for high-volume industrial printing production, the HXPS420 Plastic Coil Forming and Binding Machine delivers fully integrated spiral binding performance for mass manufacturing of plastic coil books and notebooks. It supports flexible production of printed products in different sizes and thicknesses, solving the low-efficiency and cumbersome multi-step operation of traditional separate coil forming and binding equipment, and becoming an ideal specialized solution for modern printing factories.

HXPS420 Plastic Spiral Book Notebook Binding Machine Direct Wire Feeding Continuous Operation Unit

Adopting an optimized dual-station structural layout, the machine achieves outstanding high-speed running stability during long-term batch operation. It integrates plastic wire automatic forming, precise inserting, fixed-length cutting and end bending procedures into one continuous automated workflow. The one-piece processing design eliminates repeated manual handling and equipment switching, greatly streamlining the entire coil binding production process and drastically improving overall production throughput.

Equipped with a direct wire feeding system, the HXPS420 effectively reduces raw material consumption and avoids unnecessary material turnover and waste generated in traditional coil binding processes. This ingenious feeding structure lowers comprehensive production costs for printing enterprises while maintaining continuous and stable material supply, bringing superior cost-performance for mass spiral book manufacturing.

Featured with a professional patented binding mechanism, the equipment achieves ultra-smooth and precise coil binding for both thin pamphlets and thick hard-bound notebooks. It ensures accurate coil penetration, neat bending and uniform binding tension without loose coils, deviation or product damage. The reliable mechanical structure guarantees consistent and high-quality binding results for every finished product.

Combining wide product compatibility, stable dual-station high-speed operation, material-saving feeding system and patented precision binding technology, the HXPS420 Plastic Coil Forming and Binding Machine perfectly meets the diversified and large-scale production demands of spiral-bound books, notebooks and custom coil printing products. It is a highly reliable and efficient upgrading equipment for printing factories focusing on plastic coil binding business.

HXPS420 Plastic Spiral Book Notebook Binding Machine Direct Wire Feeding Continuous Operation Unit
